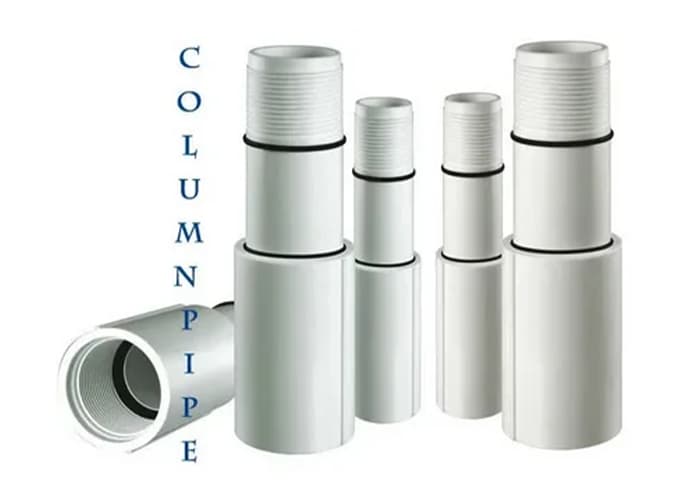

UPVC Column Pipe Supplier

Shadoflex Lock uPVC Column Pipes are made with advanced Bi-Orientation Technology for high strength and durability. Specially designed for submersible pumps, they handle high pressure and tensile load with ease. The double-locking system ensures a secure and reliable installation every time.

Talk to an Expert

Key Features

High load bearing strength for heavy pressures
Easy installation with solvent jointing
Non-corrosive for longer life
Smooth internal surface for efficient flow
Light in weight for easy transportation and installation
Square thread for reliable and high-pressure sealing
Cost-effective with low installation cost
Economic with high quality at an affordable price

Technical Information

Self-extinguishing, does not support combustion
High tensile strength and high pressure rating
Excellent pull-out strength
Adjustable according to water depth
High tensile strength of pipe coupler locking (100% lock safety)
Low friction losses due to smooth internal surface
Resistant to chemical reactions, bacterial growth, corrosion, and rusting
Available in sizes 1" (33mm) to 4" (113mm) with various ranges (Economy, Medium, Standard, Super Standard, Heavy, Super Heavy)

Technical Details

Pipe Strength And Pressure Details

Size		Outer Diameter	Type of Pipe	Max Depth of Installation (Feet)	Safe Pulling Load with Chain	Safe Allow Hydrostatic Pressure (kgf/cm²)
Inch	mm (NB)	Outer Diameter	Type of Pipe	Max Depth of Installation (Feet)	Safe Pulling Load with Chain	Safe Allow Hydrostatic Pressure (kgf/cm²)
1"	25	33.4 ± 0.10	BELL END	150	350	12.5
			ECO	200	550	16
			MED	300	770	21
			BELL END	200	450	15
			STD	600	1300	30
1 1/4"	32	42.16 ± 0.13	BELL END	150	400	12.5
			ECO	200	850	15
			MED	300	1100	21
			BELL END	200	550	15
			STD	500	1500	25
			HVY	900	2000	32
1 1/2"	40	28.16 ± 0.15	BELL END	150	400	12.5
			ECO	200	850	15
			MED	350	1300	21
			BELL END	200	550	15
			STD	650	17500	27
			HVY	900	2000	35
2"	50	60.20 ± 0.15	ECO	200	1000	13
			ECO+	200	1200	13
			MED	350	1500	17
			STD	650	2100	21
			SUP.STD	800	2500	28
			HVY	900	2850	32
			SUP.HVY	1000	3250	30
			EXTRA SUP.HVY	1200	3450	37
2 1/4"	53	63.10 ± 0.16	STD	600	2100	20
			HVY	900	2900	28
			SUP.HVY	1200	3500	37
2 1/2"	65	76.10 ± 0.18	ECO	200	1700	12
			MED	300	1900	14
			STD	600	2700	21
			HVY	900	4200	32
			SUP.HVY	1000	4800	30
			EXTRA SUP.HVY	1200	5200	37
3"	80	88.90 ± 0.20	ECO	200	2300	10
			MED	300	2750	12
			STD	500	4000	17
			HVY	850	5950	26
			SUP.HVY	1100	6500	37
4"	100	113.20 ± 0.25	ECO	200	3800	9
			MED	300	4100	11
			STD	500	5800	16
			HVY	850	9300	26
			SUP.HVY	1100	11500	37

Product Applications

Used Across Multiple Industries

Irrigation Wells Domestic Wells Industrial Wells
Reverse osmosis plant & industrial D.M. plants
Constructional buildings & residential homes
Public utilities and swimming pools
For terrace, down take & concealed looping
Coldwater application (both indoor & outdoor)
