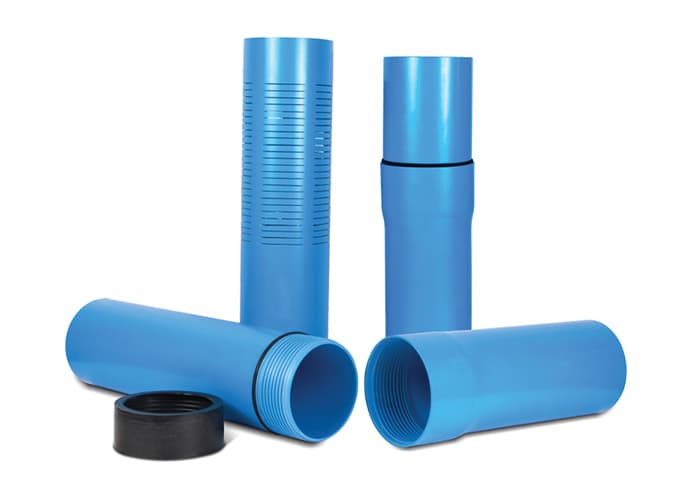

Shadoflex UPVC Casing Pipes are designed for borewell and tube well applications to ensure safe and efficient groundwater extraction. Made from high-quality uPVC, they are non-corrosive, durable, and resistant to chemical reactions. Their smooth inner surface allows better water flow and reduces maintenance. Light in weight and economical, they provide reliable protection to the borewell structure.
| Nominal Size (DN) | Mean Outer Diameter (Min.) | Mean Outer Diameter (Max.) | Outer Diameter at Any Point (Min.) | Outer Diameter at Any Point (Max.) | Mean Outer Diameter Over Connection (Min.) | Mean Outer Diameter Over Connection (Max.) | Wall Thickness (Min.) | Wall Thickness (Max.) |
|---|---|---|---|---|---|---|---|---|
| 100 | 113.00 | 113.3 | 113.90 | 117.40 | 120.00 | 120.00 | 5.00 | 5.70 |
| 115 | 125.00 | 125.3 | 124.90 | 125.40 | 132.00 | 132.00 | 5.00 | 5.70 |
| 125 | 140.00 | 140.4 | 139.90 | 140.50 | 150.00 | 150.00 | 6.50 | 7.30 |
| 150 | 165.00 | 165.4 | 164.60 | 165.60 | 178.00 | 178.00 | 7.50 | 8.50 |
| 175 | 200.00 | 200.5 | 199.60 | 200.00 | 215.00 | 215.00 | 8.80 | 9.80 |
| 200 | 225.00 | 225.00 | 224.50 | 225.80 | 243.00 | 243.00 | 10.00 | 11.20 |
