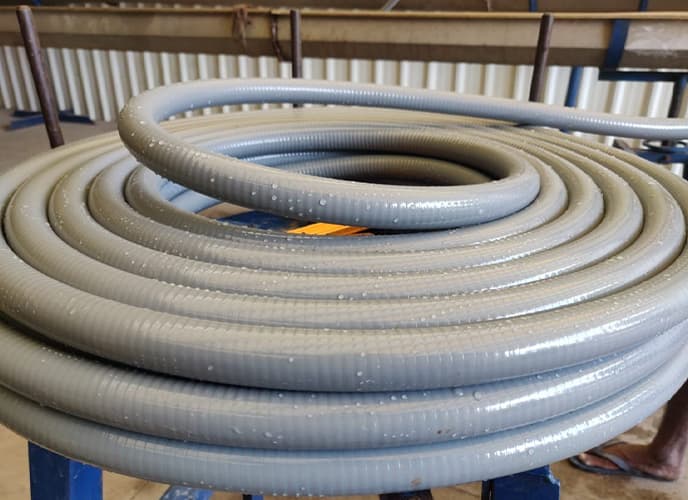

PVC Suction Medium Duty Hose (Grey)

PVC Suction Medium Duty Hose (Grey)

The Medium Duty Suction Hose is a durable, lightweight solution designed for efficient water delivery in irrigation systems. It is also suitable for handling light acids, saline water, alkalis, and various other chemicals, excluding solvents. Manufactured by our experienced team using high-quality raw materials and advanced technology, this hose meets all industry standards. It is widely used in agriculture, construction, and waste management sectors. The Medium Duty Suction Hose offers excellent resistance to saline water and light acids, ensuring reliable performance in demanding environments. Built to meet the latest industry standards, it delivers superior functionality and longevity.

Talk to an Expert

Key Features

  • Reinforced structure
  • Balanced strength
  • Good chemical resistance
  • abrasion resistance
Product Specifications

Detailed size and specifications

size Inches diameter inside Diameter outside Diameter bending Radius working Pressure bursting Pressure standard Length
3/4"2019.0 ± 0.523.6 ± 1.04572430/50
1"2525.4 ± 0.530.0 ± 1.05572330/50
1-1/4"3031.8 ± 0.536.8 ± 1.0756.52030/50
1-1/2"4038.0 ± 0.543.3 ± 1.09551630/50
2"5050.8 ± 0.557.8 ± 1.512241630/45/50
2-1/2"6563.5 ± 1.072.0 ± 1.516041630/45
3"7576.2 ± 1.085.0 ± 1.52723.51130/36
4"100101.2 ± 1.0112.2 ± 2.02903.51115/18/30
Product Applications

Used Across Multiple Industries

  • General pumping and suction application in agriculture, industry and construction.
  • Conveyance of waste, sludge, slurry, chemicals and other waste materials.
  • Suction & Delivery of saline water, light acids, alkaline and other chemicals excepting solvents.
  • Fisheries and shipping industries.
  • Conveying of granules of fine particles of raw material in processing industries.
