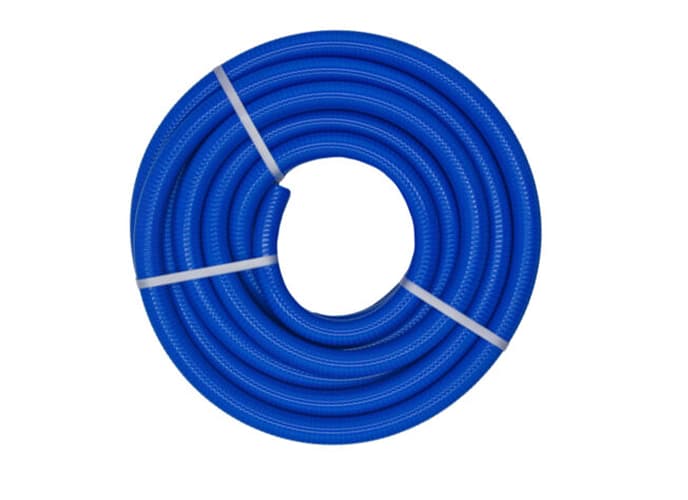

Heavy Duty Suction Hose (Blue) is ideal for the suction and delivery of abrasive materials like sand, saline water, light acids, alkalise, and other non-solvent chemicals across various industries. It is lightweight, flexible, and easier to handle compared to traditional rubber hoses. The hose is tough, durable, and long-lasting, ensuring efficient performance in heavy-duty operations. Available in multiple diameters and customizable as per customer requirements.
| size Inches | diameter | inside Diameter | outside Diameter | bending Radius | working Pressure | bursting Pressure | standard Length |
|---|---|---|---|---|---|---|---|
| 1" | 25 | 25.4 ± 0.5 | 31.5 ± 0.5 | 48 | 8 | 25 | 30 |
| 1-1/4" | 30 | 31.8 ± 0.5 | 36.8 ± 0.5 | 68 | 7 | 21 | 30 |
| 1-1/2" | 40 | 38.0 ± 0.5 | 46.3 ± 1.5 | 75 | 5.5 | 18 | 30 |
| 2" | 50 | 50.0 ± 0.5 | 60.8 ± 1.5 | 100 | 4.5 | 18 | 30 |
| 2-1/2" | 65 | 63.5 ± 1.0 | 74.5 ± 1.5 | 120 | 4.5 | 18 | 30 |
| 3" | 75 | 76.2 ± 1.0 | 87.2 ± 1.5 | 155 | 4.5 | 18 | 30 |
| 4" | 100 | 101.2 ± 1.5 | 114.2 ± 2.0 | 213 | 4 | 10 | 15/18/30 |
| 5" | 125 | 127.0 ± 1.5 | 141.0 ± 2.0 | 230 | 3 | 10 | 15/18 |
| 6" | 150 | 152.4 ± 2.0 | 169.4 ± 2.0 | 375 | 2.5 | 9 | 15/18 |
| 8" | 200 | 203.2 ± 2.0 | 224.4 ± 2.0 | 600 | 2.5 | 8 | 4.5/6 |
