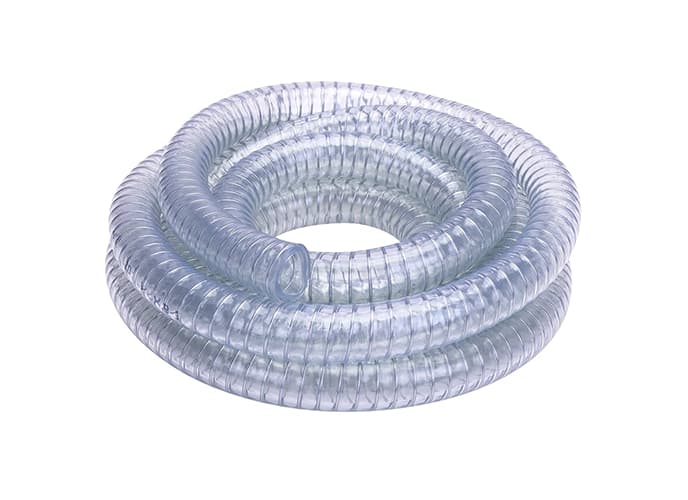

PVC Suction Hose Steel Wire Hose

PVC Suction Hose Steel Wire Hose

Steel Wire Reinforced Hose is designed for suction and discharge of water, oil, and other fluids in factories, agriculture, construction, and sanitation systems. The hose combines flexible polymer walls with strong steel wire reinforcement, providing excellent pressure resistance and structural strength. It is ideal for applications where high-pressure flow, durability, and reliability are required, even in demanding environments such as shipyards, industrial sites, and heavy machinery operations.

Talk to an Expert

Key Features

  • Steel wire reinforcement for high pressure strength
  • Flexible and resistant to crushing
  • Suitable for suction & discharge applications
  • Durable and long service life
Product Specifications

Detailed size and specifications

nominal Size inside Diameter outside Diameter wall Thickness working Pressure standard Length
12 mm12.7 mm18.7 mm3.0 ± 0.2 mm7 kg/cm²50/100 mtrs
15 mm15.85 mm22.8 mm3.5 ± 0.2 mm6 kg/cm²50/100 mtrs
20 mm19.05 mm26.0 mm3.5 ± 0.2 mm6 kg/cm²30/50/100 mtrs
25 mm25.4 mm33.4 mm4.0 ± 0.2 mm5 kg/cm²30/50/100 mtrs
30 mm31.75 mm39.8 mm4.0 ± 0.2 mm5 kg/cm²30/50/100 mtrs
40 mm38.1 mm47.1 mm4.5 ± 0.2 mm5 kg/cm²30/50 mtrs
50 mm50.8 mm60.8 mm5.0 ± 0.2 mm5 kg/cm²30/50 mtrs
65 mm63.0 mm74.0 mm5.5 ± 0.2 mm5 kg/cm²30 mtrs
Product Applications

Used Across Multiple Industries

  • Water and oil transfer
  • Industrial machinery and equipment
  • Agriculture & irrigation systems
  • Construction, shipyards, and sanitation lines
