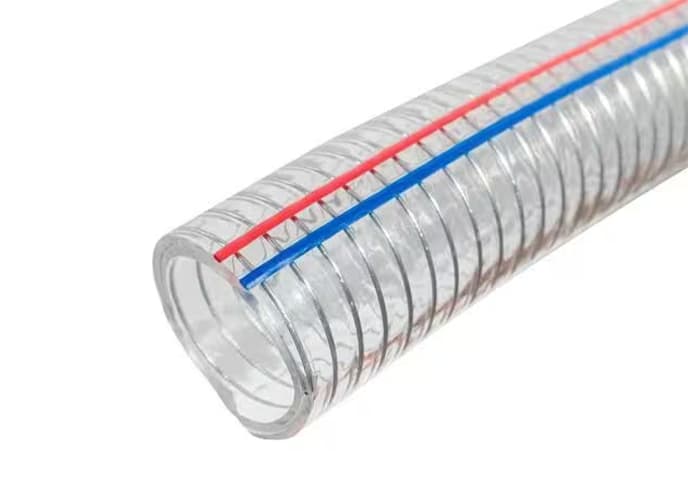

Food Grade Hose is designed to ensure safe and hygienic transfer of food, beverages, and drinking water. Made from FDA-approved materials, it prevents contamination and preserves product quality, taste, and purity. Ideal for dairies, breweries, food processing units, and beverage industries, it offers durability, flexibility, and reliable performance in sanitary applications.
| id M M | id Inch | wall Thickness | working Pressure | bursting Pressure | standard Length |
|---|---|---|---|---|---|
| 20* mm | 3/4" | 3.0 mm | 10.0 kg/cm² | 20.0 kg/cm² | 30/50 mtrs |
| 25* mm | 1" | 3.5 mm | 9.0 kg/cm² | 19.0 kg/cm² | 30/50 mtrs |
| 38** mm | 1 1/2" | 4.0 mm | 8.5 kg/cm² | 17.0 kg/cm² | 30/50 mtrs |
| 50** mm | 2" | 4.5 mm | 6.5 kg/cm² | 15.0 kg/cm² | 30/50 mtrs |
| 65** mm | 2 1/2" | 5.5 mm | 7.0 kg/cm² | 15.0 kg/cm² | 30/50 mtrs |
| 75*** mm | 3" | 5.5 mm | 5.5 kg/cm² | 14.0 kg/cm² | 30/50 mtrs |
| 100*** mm | 4" | 7.0 mm | 4.5 kg/cm² | 11.0 kg/cm² | 30 mtrs |
| 125**** mm | 5" | 7.0 mm | 3.5 kg/cm² | 9.5 kg/cm² | 15/18 mtrs |
| 150**** mm | 6" | 8.5 mm | 3.0 kg/cm² | 9.0 kg/cm² | 15/18 mtrs |
| 175**** mm | 7" | 9.0 mm | 3.0 kg/cm² | 9.0 kg/cm² | 6/10 mtrs |
| 200**** mm | 8" | 10.0 mm | 3.0 kg/cm² | 9.0 kg/cm² | 6/10 mtrs |
