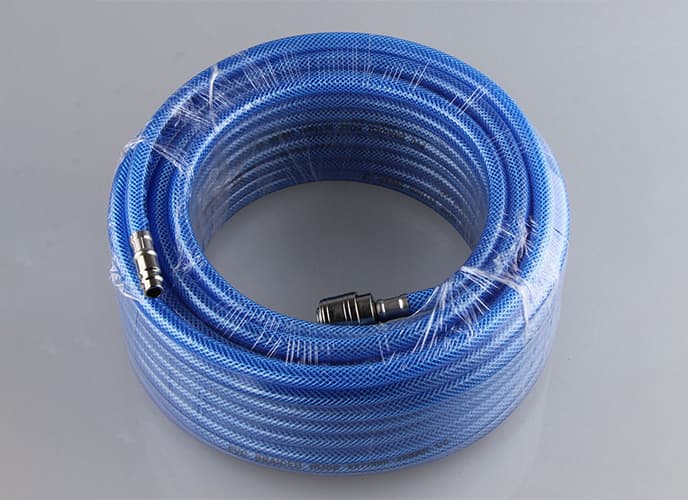

High Pressure Air Hose is constructed with multiple layers of synthetic yarn braiding, providing strong resistance to high pressure while maintaining excellent flexibility. It is durable, lightweight, and kink-resistant, ensuring smooth and reliable airflow. Commonly used in compressed air and pneumatic tools across industrial, workshop, and construction applications.
| size M M | wall Thickness | working Pressure | standard Length |
|---|---|---|---|
| 5 | 2.35 mm | 15°C in kg/cm² | 50/100/200 mtrs. |
| 6 | 3.1 mm | 25°C in kg/cm² | 50/100 mtrs. |
| 8 | 3.35 mm | 25°C in kg/cm² | 50/100 mtrs. |
| 10 | 3.5 mm | 25°C in kg/cm² | 50/100 mtrs. |
| 12 | 3.6 mm | 20°C in kg/cm² | 50/100 mtrs. |
| 15 | 4.1 mm | 20°C in kg/cm² | 50/100 mtrs. |
| 20 | 4.5 mm | 20°C in kg/cm² | 50/100/200 mtrs. |
| 25 | 4.8 mm | 15°C in kg/cm² | 50/100 mtrs. |
| 30 | 4.8 mm | 15°C in kg/cm² | 30/50/60/100 mtrs. |
| 40 | 5.3 mm | 15°C in kg/cm² | 30/50/60 mtrs. |
| 50 | 6 mm | 10°C in kg/cm² | 30/50/60 mtrs. |
